Features

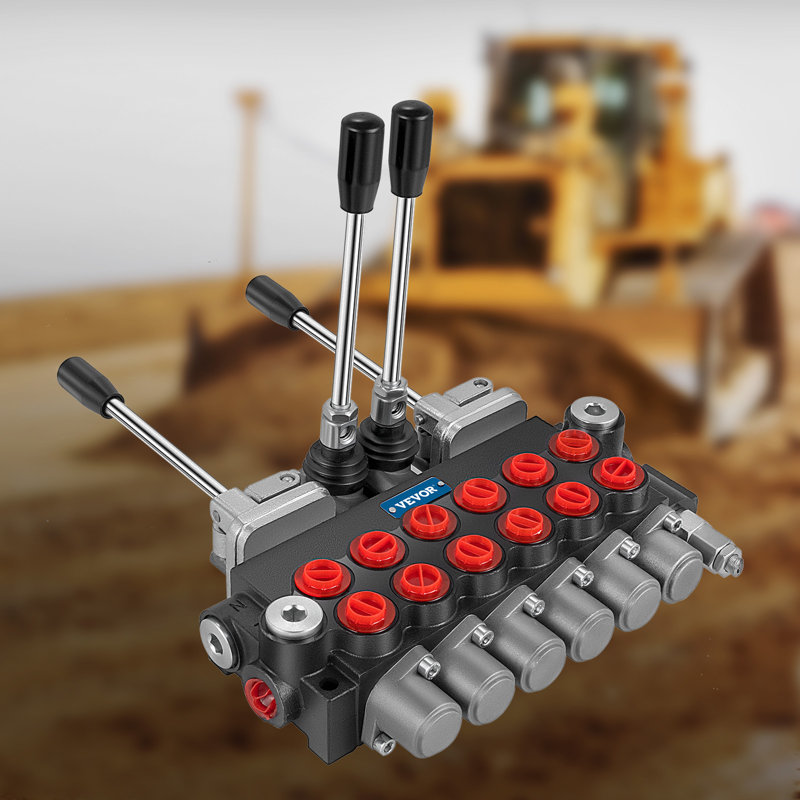

• Hydraulic Spool Valve: Equipped with six spools and 1/2" BSPP-type inlet/outlet ports. The maximum pressure of this hydraulic valve is 310 bar (4500 psi), and the maximum flow can reach 50 l/min (11 gpm). The flow of hydraulic oil is controlled by connecting the valve to the oil line.
• Double-Acting Cylinders: This hydraulic control valve is designed to operate double-acting cylinders. All standard spools are spring-returned and can be reset to the neutral position. The springs at the bottom of the handles make the joysticks easy to control and responsive.
• Superior Inner Valve Design: The check valve within the valve body ensures that the hydraulic oil does not backflow, while the internal relief valve allows for precise adjustment of the hydraulic system's working pressure.

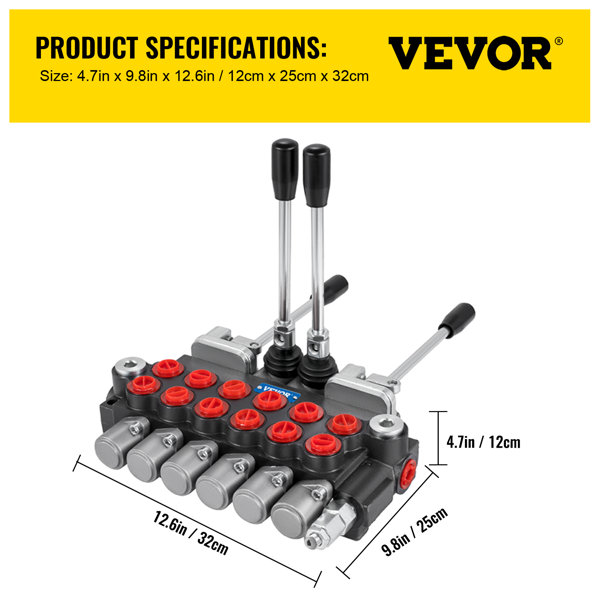

• Compact Structure: This 6-spool hydraulic valve is constructed from aluminium and iron for long-term durability. The compact design allows for installation in narrow areas, maximising your control capabilities in tight spaces.
• Widely Used: Ideal for hydraulic systems in agriculture, horticulture, forestry, construction, and industry. This distributor is adapted for various machinery, including tractors, sprayers, loaders, excavators, sweepers, and other hydraulically controlled industrial machines.
