Features

• Overall Length: 146mm Handle Length: 120mm Fixing Plate Size: 68mm x 16mm x 6mm Fixing Centres: 43mm
• Designed to fit any type of window, including uPVC and timber due to its slim fixing plate. Can be matched with the peardrop stays and door handles in the range.
• The handle is cranked forwards to ensure this protrudes far enough from the window for ease of use.
• The product is handed and therefore care needs to be taken when choosing the correct hand. From the inside view, if your window is hinged on the left then a left-hand fastener is required.
• They have a 7mm² x 40mm spindle and can be locked by way of a grub screw.
• Can be used with an espagnolette gearbox & window lock.

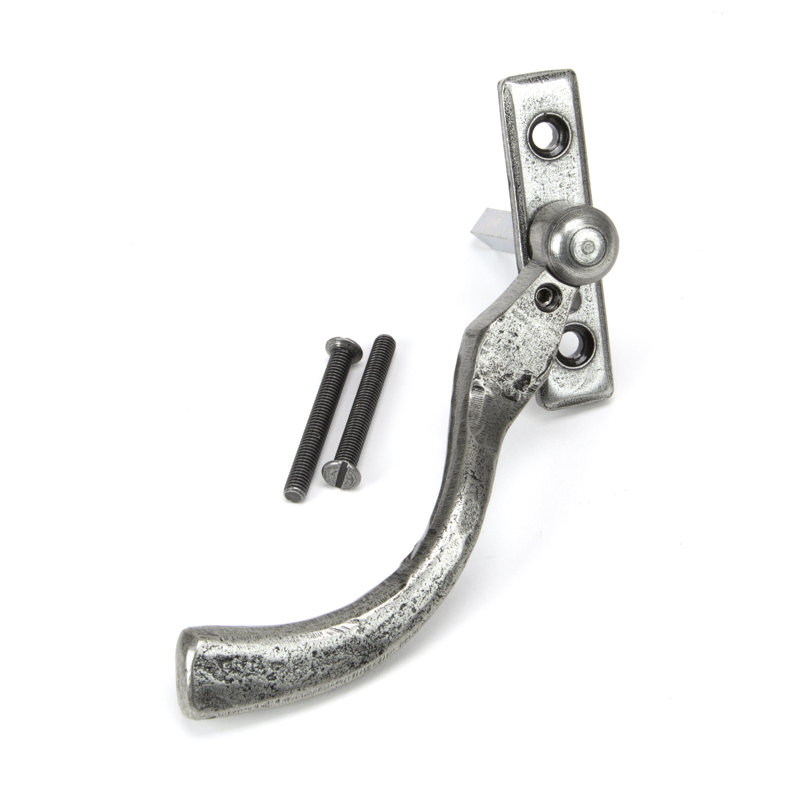

• Supplied with matching SS M5 screws.
