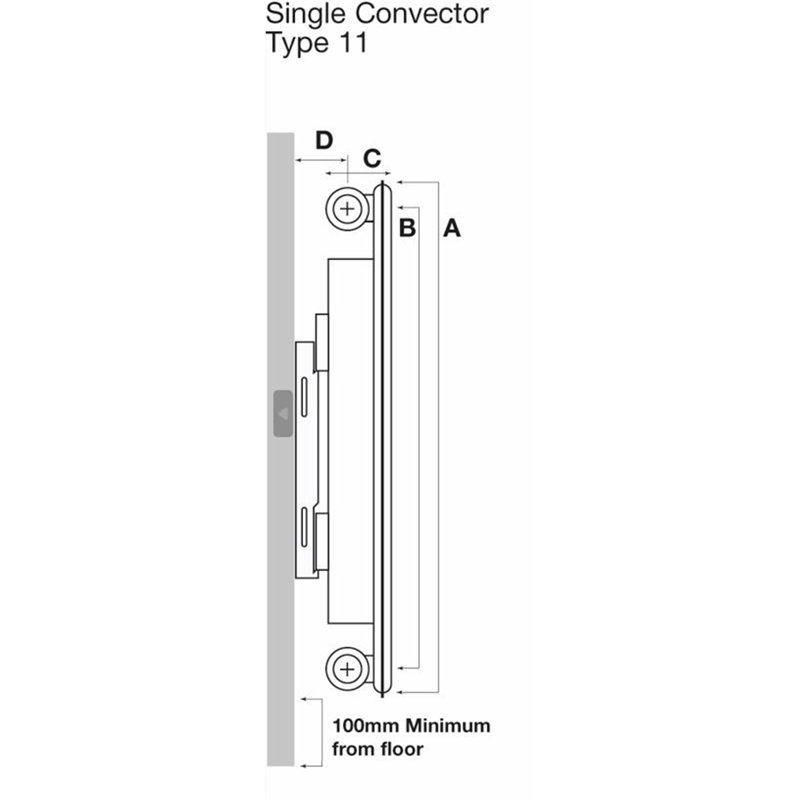

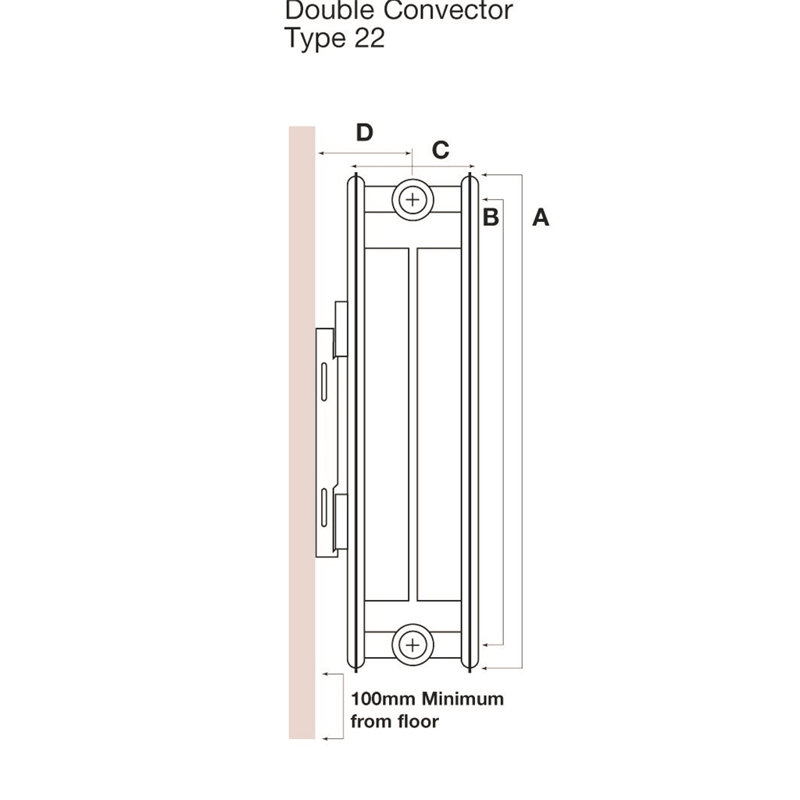

A Premium Contemporary Panel Radiator. One of the highest output radiators in the market place. EN 442 tested and certified. High quality finish - white enamel (RAL 9016). Operating pressure 10 bars (tested to 13 bars/188 PSI). Maximum operating temperature 120 Degrees C. Manufactured under BS EN ISO 9001 quality system. Key Features - One of the highest output radiators in the market place. EN 442 tested and certified. - Factory fitted top grilles and side panels. - High quality finish - white enamel (RAL 9016). - Operating pressure 10 bars (tested to 13 bars/188 PSI). - Maximum operating temperature 120 Degrees C. - Manufactured under BS EN ISO 9001 quality system. - 10 Year Warranty Installation - For maximum efficiency radiators should be fixed at not less than 100mm (4") from finished floor level. - Pipe positioning guide for manual valve allow 35mm to centre of pipe. For TRV valve allow 45mm to centre of pipe. - To prevent damage to radiator it is strongly recommended during installation to leave protective packaging on radiator by simply removing lug protectors and pre cut tapping connection. Water Treatment / Corrosion Inhibitor It is strongly recommended that where appropriate all indirect/closed heating systems are cleansed by a flushing agent and treated with a central heating system inhibitor before installing the radiator; according to the specifications of the British Standard for preparation, commissioning and maintenance of domestic central heating and cooling water systems, BS 7593:2019. This is especially important if the product is an addition to an existing system and would ensure the continued efficiency and longevity of the manufacturing guarantee.
