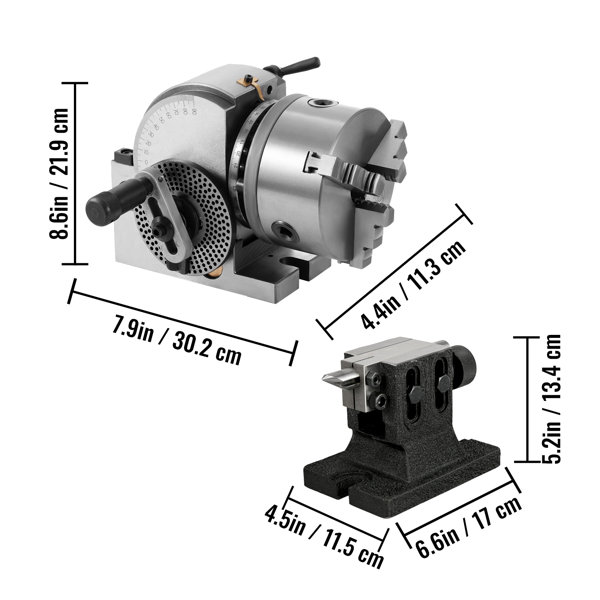

Dividing Head, 6 in/160 mm, Dividing Head Set, 3-jaw Chuck Semi Universal Milling Set with 6 in Chuck, Tailstock, Dividing Plates, 6-1/2 in/ 168 mm Swing, for Milling Grinding Drilling Machine

Features

• Adjustable Angle: The semi-universal dividing head features a 6" 3-jaw chuck, Spindle Speed: 2500 RPM. The headstock is adjustable from the horizontal position to 90 degrees upward. Swing: 6-1/2" / 168 mm, Center Height: 5" / 128 mm, Through Hole Diameter: 0.79 in / 20 mm. 3 more jaws for 6" chuck.
• Solid Construction: This indexing head is made of HT 200 to be a long life. A rigid frame provides high accuracy with little backlash for a smooth rotation. The reduction ratio is 1:40.
• Precise & Accurate: Dividing head milling machine with laser engraving scales. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.
• MT3 Tailstock Adjustable: Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. The model of the tailstock is MT3. One extra dead center is included.
• Rich Dividing Head Set: 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and specific other numbers.
