Hydraulic Quick Connect Couplers: The hardened steel with zinc-nickel plating makes our couplers resist rust, high pressures, and provide them with corrosion resistance. The sleeve locking system makes them easy to connect. All these features make them a perfect tool for connecting hydraulic lines. Stay connected with our high-quality couplers.
Features

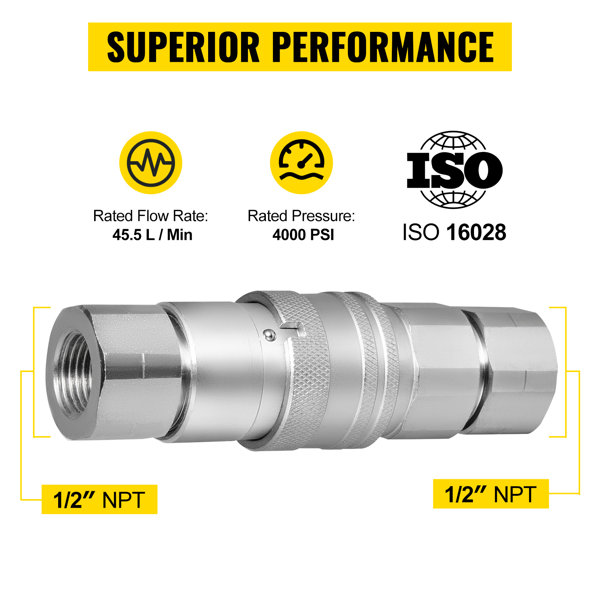

Advanced Design: This flat-face hydraulic connect coupler set features an improved valve design, which allows for a rated pressure of 275.8 bar, 45 L/min high flow, zero fluid loss, and long service life. It meets the standards of ISO 16028, perfect for connecting your hydraulic lines.
Quick Connecting: The sleeve locking mechanism (with 12.7-mm NPT threads) makes the couplers easy to connect with a simple push. Rotate the collar to lock them tightly, preventing accidental disconnection. If you need to disconnect it, aim the point at the gap, then give a pull. Connection is simple, effortless, and requires minimal force.
Hardened Steel Construction: Our quick couplers are strongly built with hardened stainless steel to resist deformation and high temperatures. The zinc-nickel plating provides high resistance against rust and corrosion. They are built tough to last for years to come.
Dust Covers Included: Dust caps are included to prevent dirt from disrupting the connecting system, preventing the risk of malfunction. The retaining ring is covered by a sleeve. Additionally, a dust seal is placed within the spring area.
High Compatibility: The quick coupler set is designed for applications where hydraulic spillage is likely to occur. It can be interchanged with most types of skid steer loaders, such as Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others.
Product Dimensions
Other Dimensions
Overall Dimensions

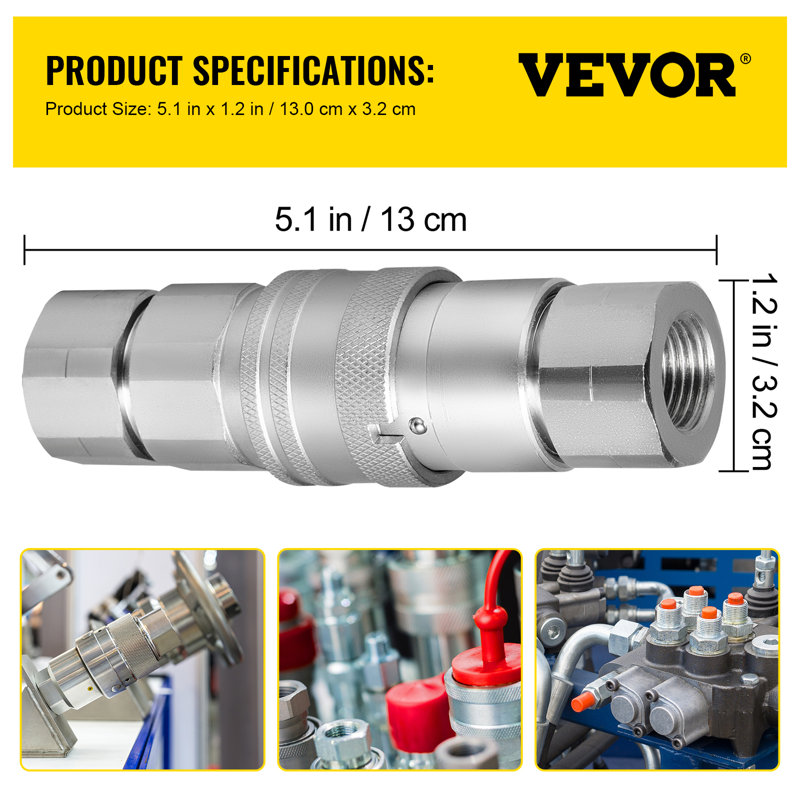

7.6cm H X 12.7cm W X 7.6cm D
Overall Product Weight
1.4kg
Details
Interior Material
Metal
Exterior Material
Metal
Colour
Silver
Assembly
Assembly Required
No
Warranty
Product Warranty
Yes
Commercial Warranty
Yes
Commercial Warranty Length
1 Year
Full or Limited Warranty
Full
Warranty Length
1 Year
